Preformed Thermoplastics
TrafficPatternsXD
Aggregate-reinforced preformed thermoplastic. Traffic tough, proven coast to coast.
For the toughest environments.
Aggregate-reinforced, preformed thermoplastic. Traffic tough, proven coast to coast.
The toughest material in the range, built for performance in Canada. Proven in high traffic and concentrated wheel loads. High colour contrast for increased safety. Specified by Canadian transit authorities, municipalities and stakeholders across Canada.
- Thickness
- 150 mil
- Aggregate
- 8–9 Mohs rating
- Skid resistance
- 60 BPN — ASTM E303
- Service life
- 10+ years
TrafficPatternsXD is specified for: Crosswalks · Entrances · Transit · Streetscapes
How it works
TrafficPatternsXD is the toughest material in the range, built for performance in Canada. Aggregate-reinforced preformed thermoplastic, 150 mil thick, with anti-skid aggregate rated 8–9 on the Mohs scale running through the full cross-section — so the grip lasts as long as the colour. It is heat-fused into asphalt or concrete, not laid on it, which is what makes it hold under plow blades, road salt and the freeze-thaw that follows. Proven in high traffic and under concentrated wheel loads, with high colour contrast for increased safety, and specified by Canadian transit authorities, municipalities and stakeholders across Canada for crosswalks, entrances, transit corridors and streetscapes.
Specify TrafficPatternsXD.
Technical data sheets, pricing, and certified installer support across Canada.
The colour palette.
Twenty standard and seventeen premium preformed-thermoplastic colours, PMS-matched. Physical samples available on request.
Standard
20 coloursView coloursHide
Standard
20 coloursThe core preformed-thermoplastic range — earth and masonry tones matched to the closest PMS reference.
Black
#000000
Salmon
PMS 486C
Khaki
PMS 7529C
Field Grey
PMS 418C
Sonoma Sand
PMS 479C
Tan
PMS 727C
Grey
PMS 423C
Cinnamon
PMS 7591C
Sand
PMS 7501C
White
#FFFFFF
Sienna
PMS 7587C
Santa Fe Clay
PMS 174C
Cocoa
PMS 7596C
Heritage Red
PMS 7593C
Chestnut
PMS 7601C
Colonial Brick
PMS 483C
Dark Red Brick
PMS 7610C
Brick Red
PMS 7624C
Burnt Orange
PMS 173C
Terracotta
PMS 7595C
Premium
17 coloursView coloursHide
Premium
17 coloursHigh-chroma premium colours for identity, wayfinding, and safety work.
LT Grey
PMS 420C
LT Blue
PMS 7688C
Blue
PMS 654C
Olive Green
PMS 5757C
Sky Blue
PMS 278C
Teal
PMS 7474C
Green
PMS 334C
SYG
PMS 389C
Kelly Green
PMS 347C
Pink
PMS 190C
Lemon Yellow
PMS 102C
LT Green
PMS 361C
Purple
PMS 259C
Orange
PMS 7579C
Yellow
PMS 7408C
Lilac
PMS 7440C
Red
PMS 200C
Screen-reference values — colours vary by monitor and substrate. Specify from physical samples. Download the colour guide (PDF)
StreetPrint templates
Pattern gallery
The work

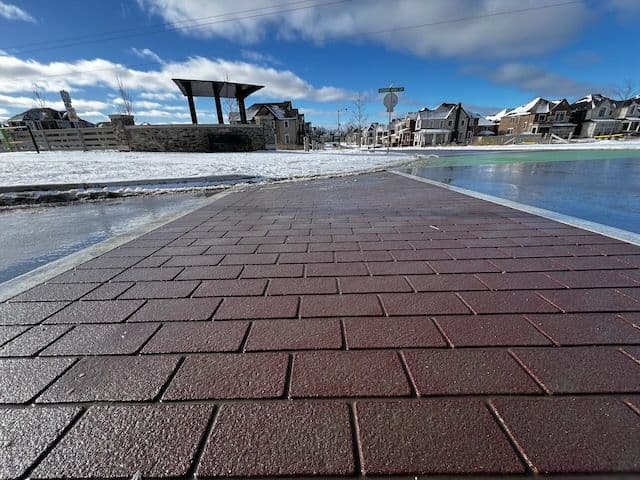

TrafficPatternsXD installations photographed on site across Canada.
109 photos

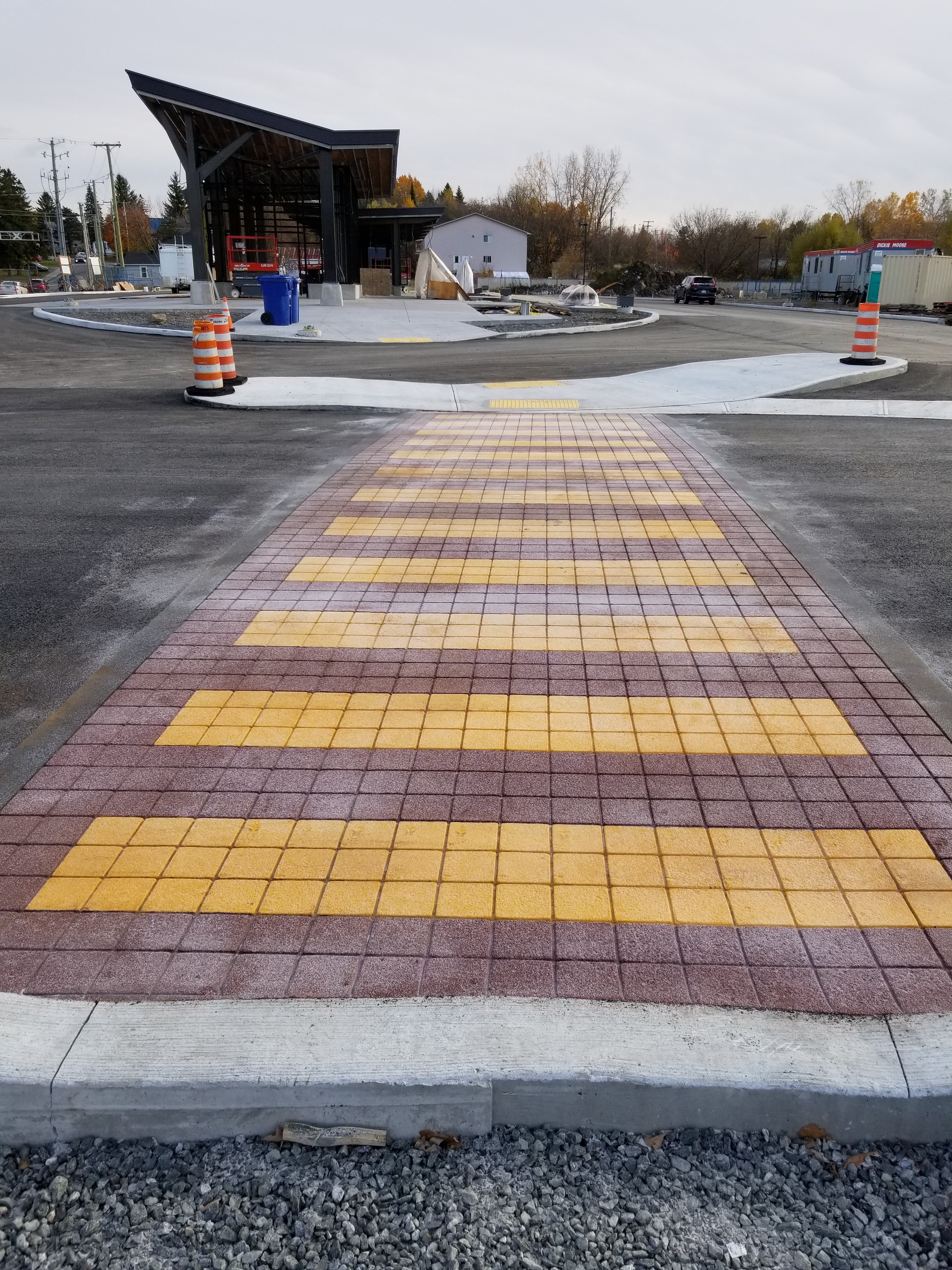

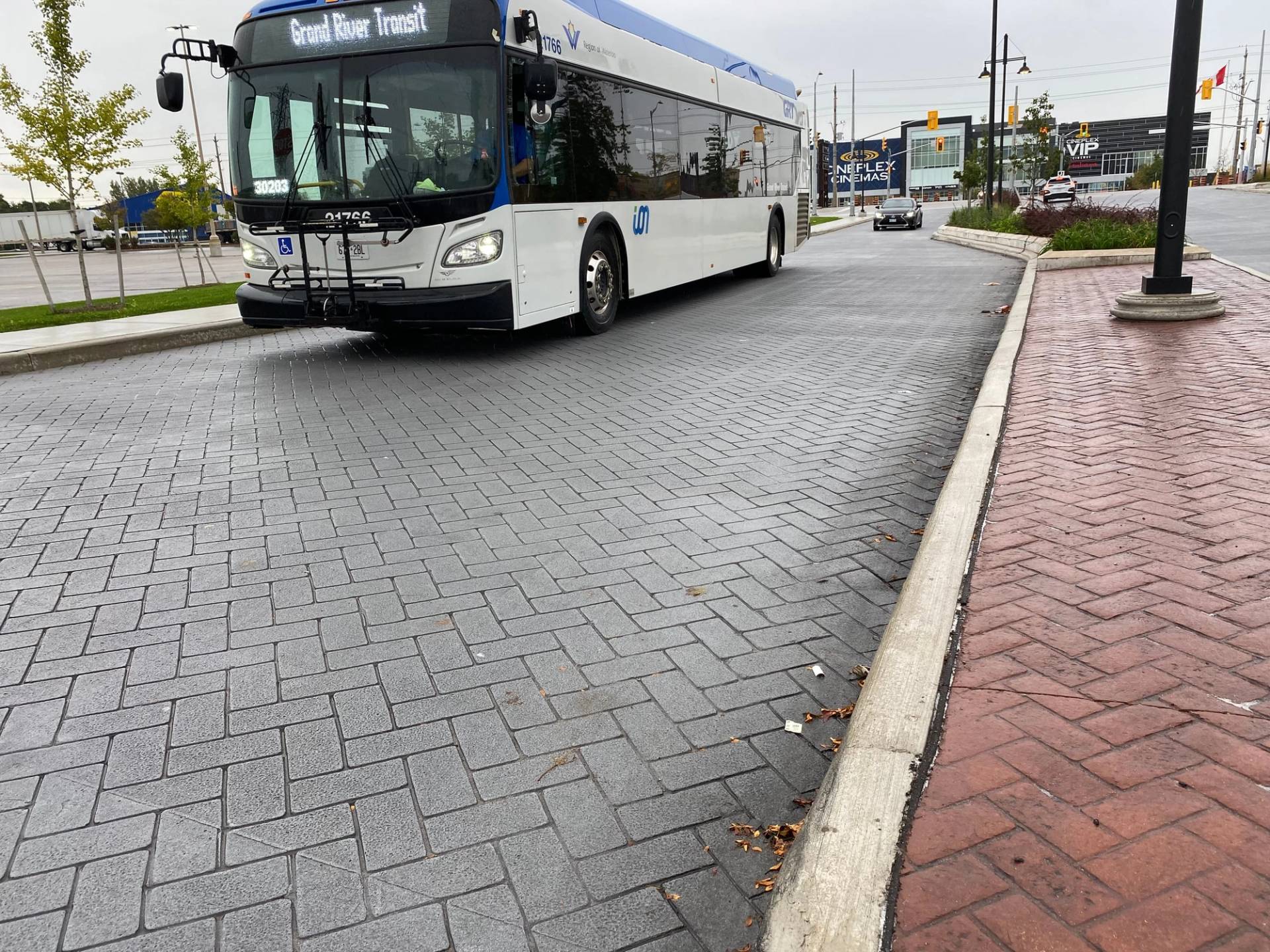

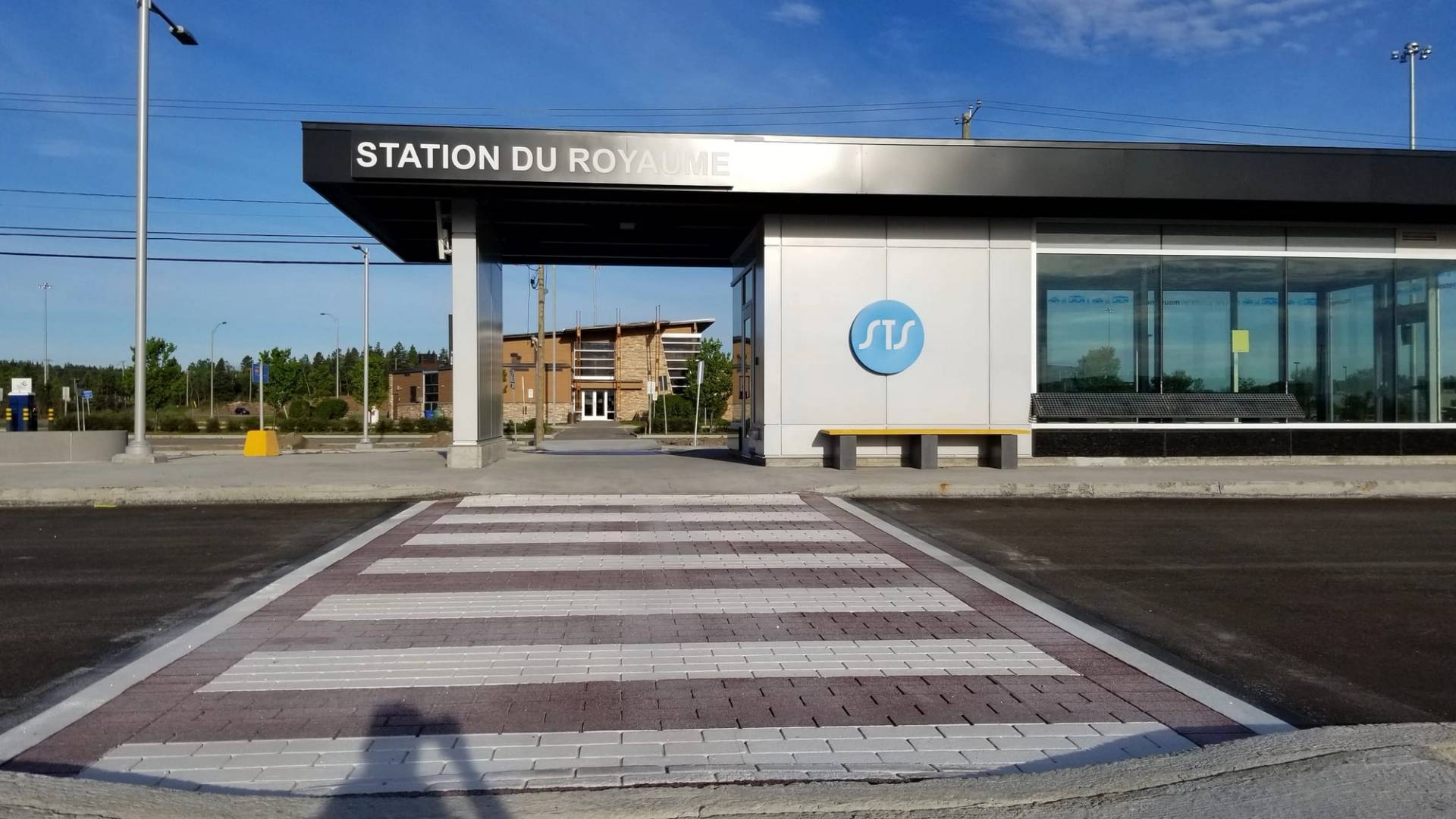

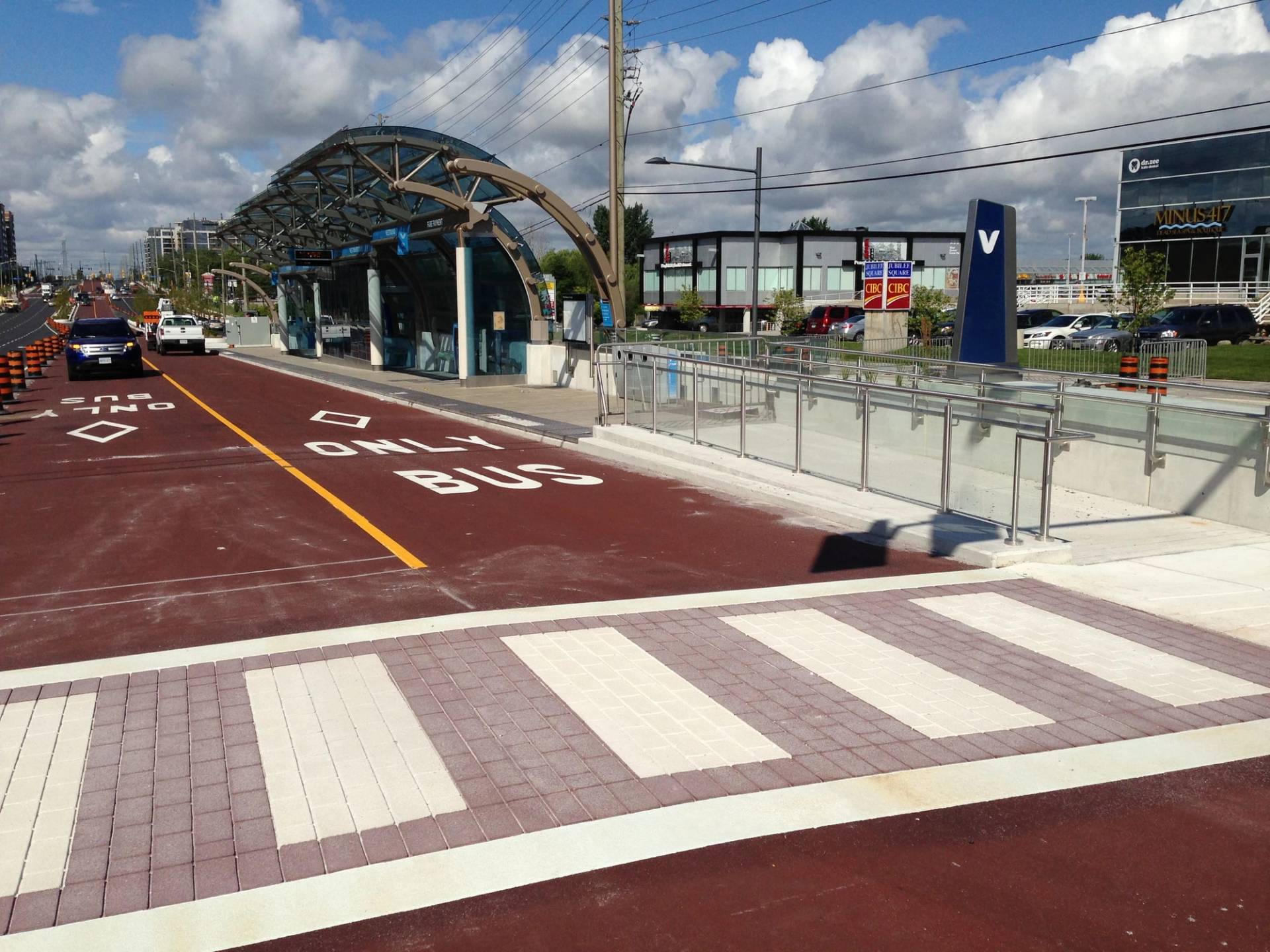

TrafficPatternsXD stamped asphalt — a transit station zone, Canada. 150mil aggregate-reinforced preformed thermoplastic.
TrafficPatternsXD stamped asphalt — a transit station zone, Canada. 150mil aggregate-reinforced preformed thermoplastic.

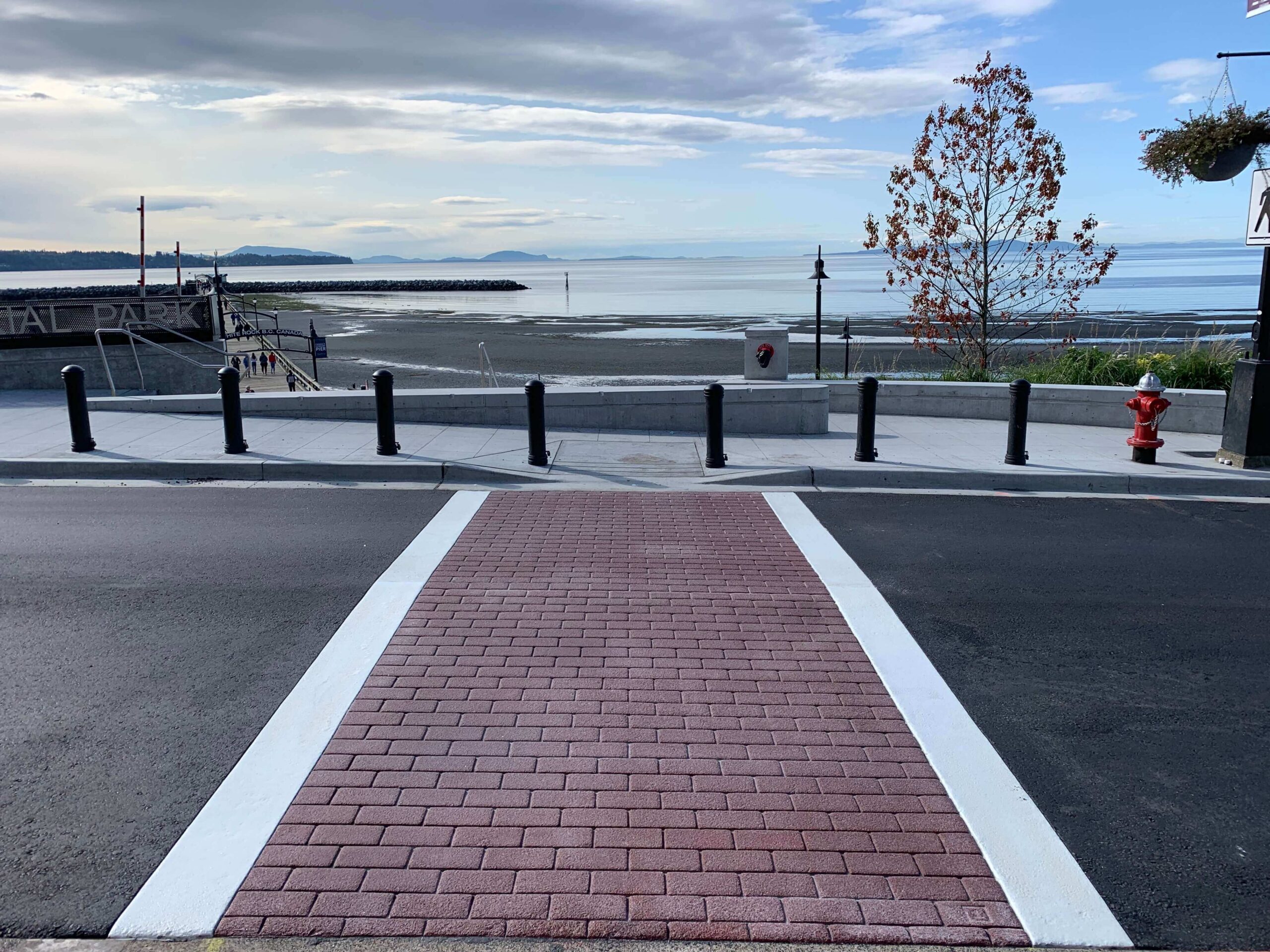

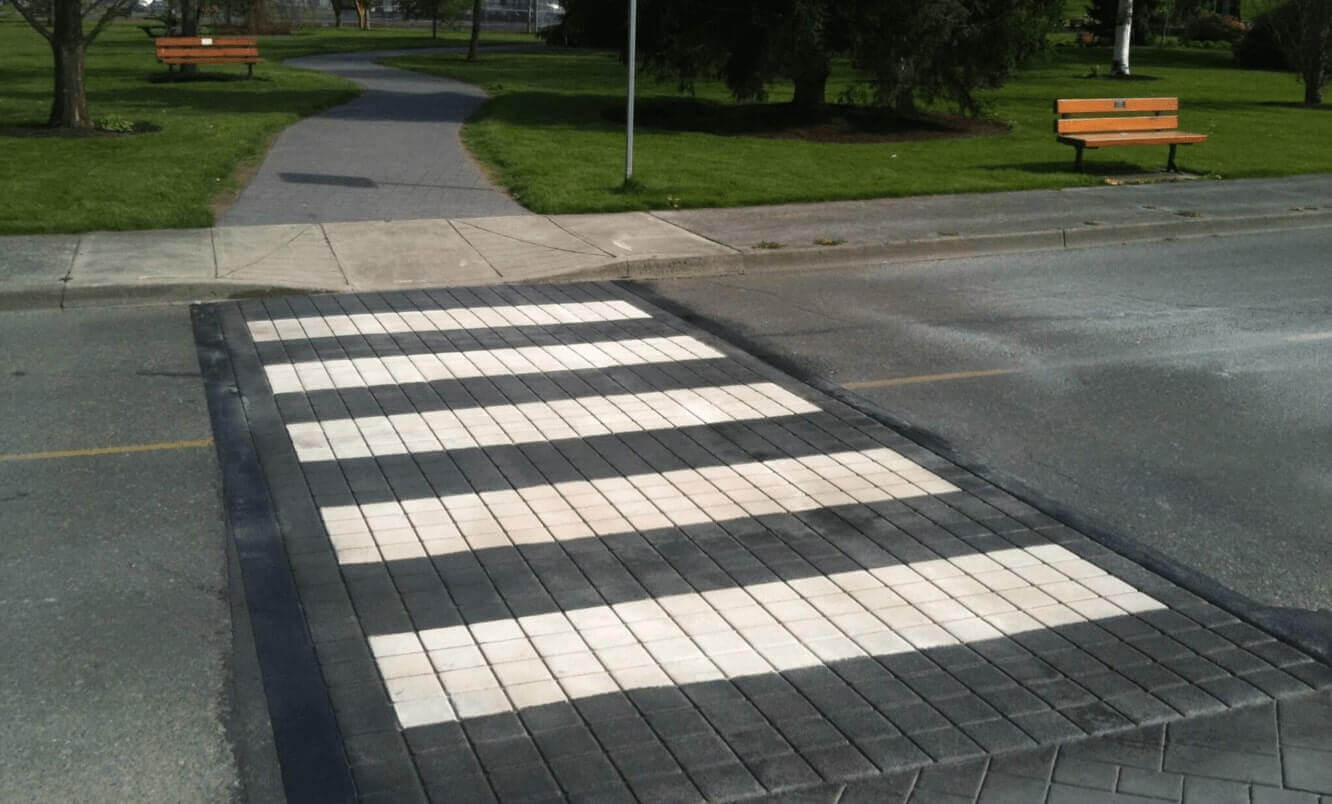

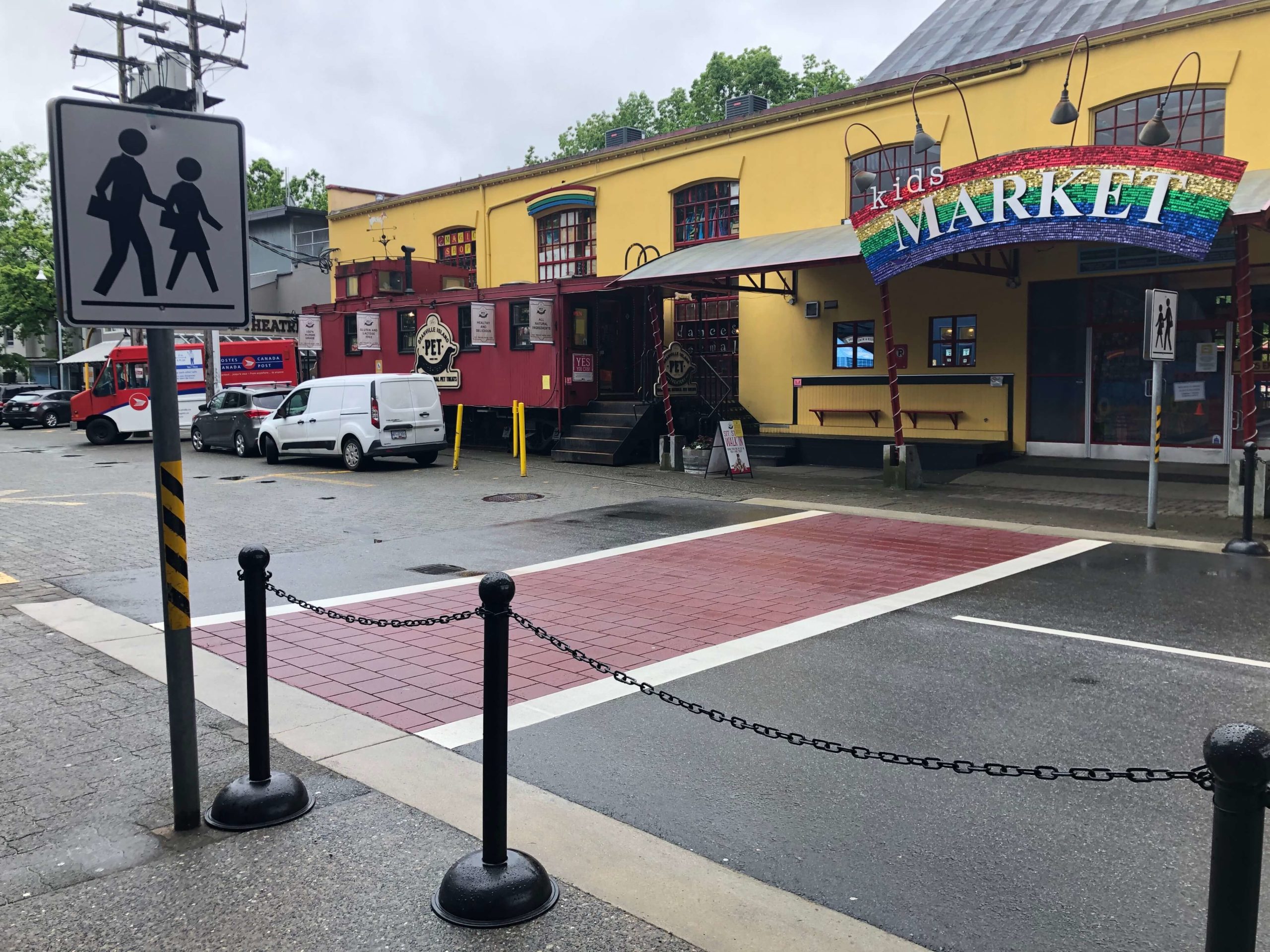

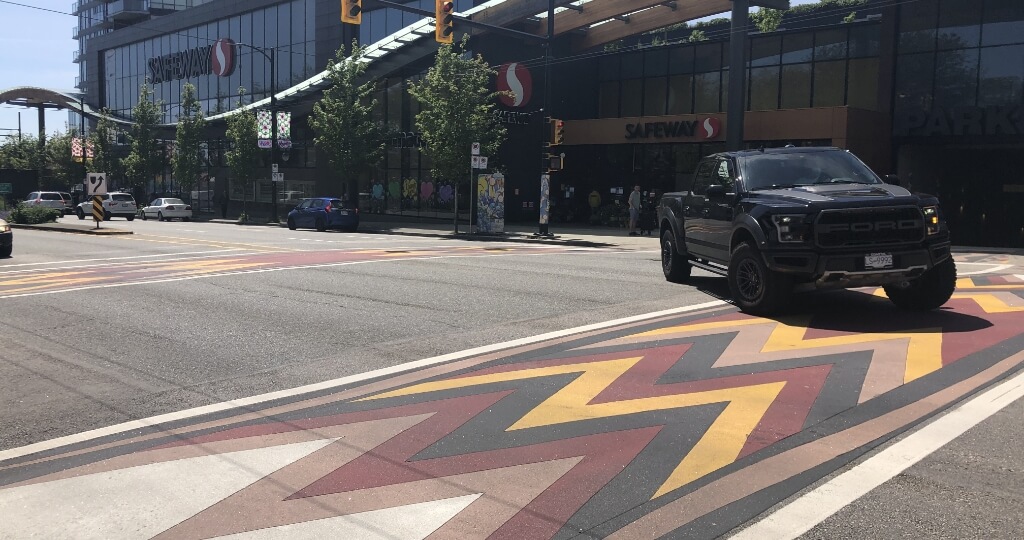

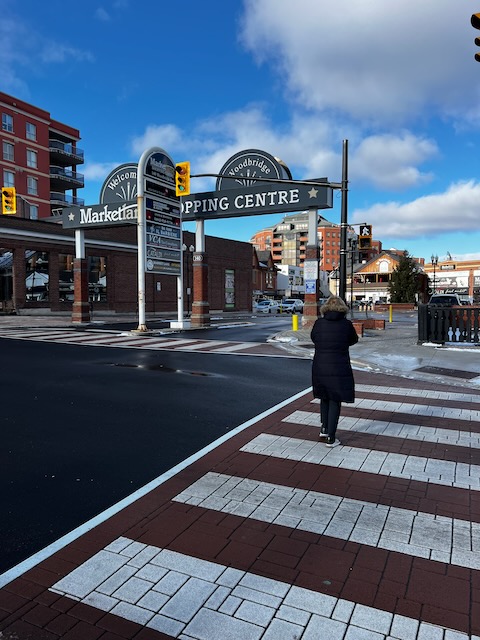

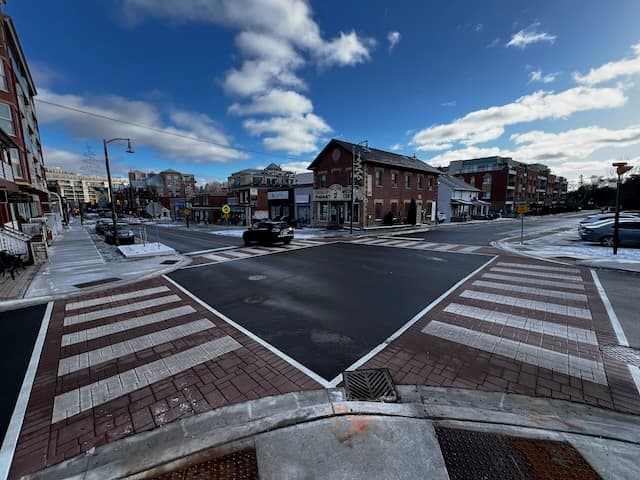

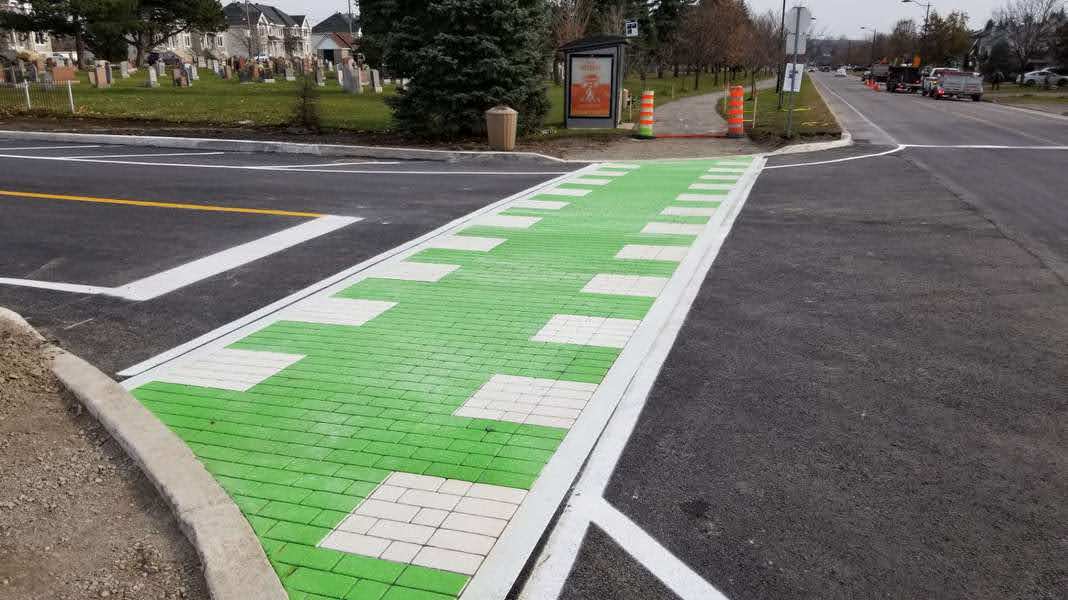

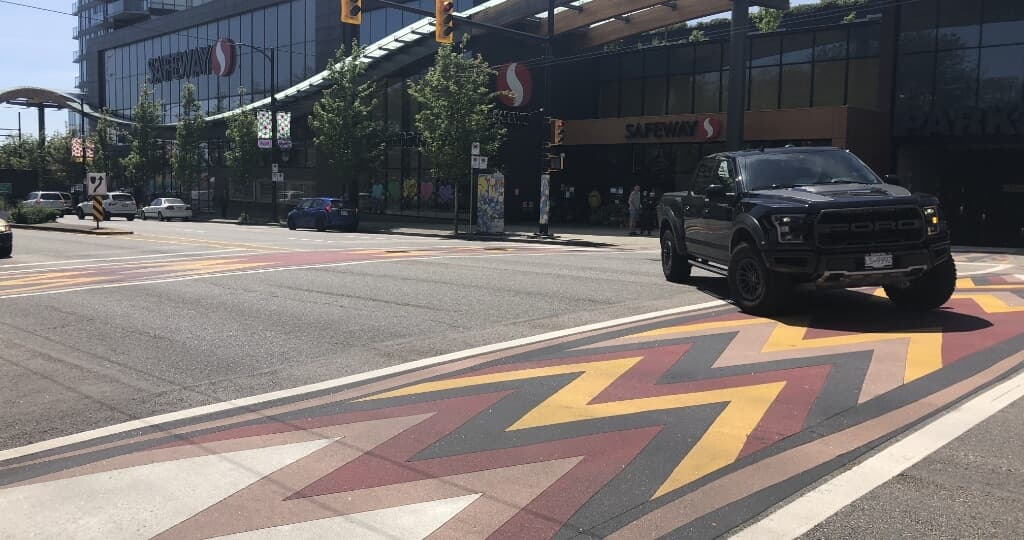

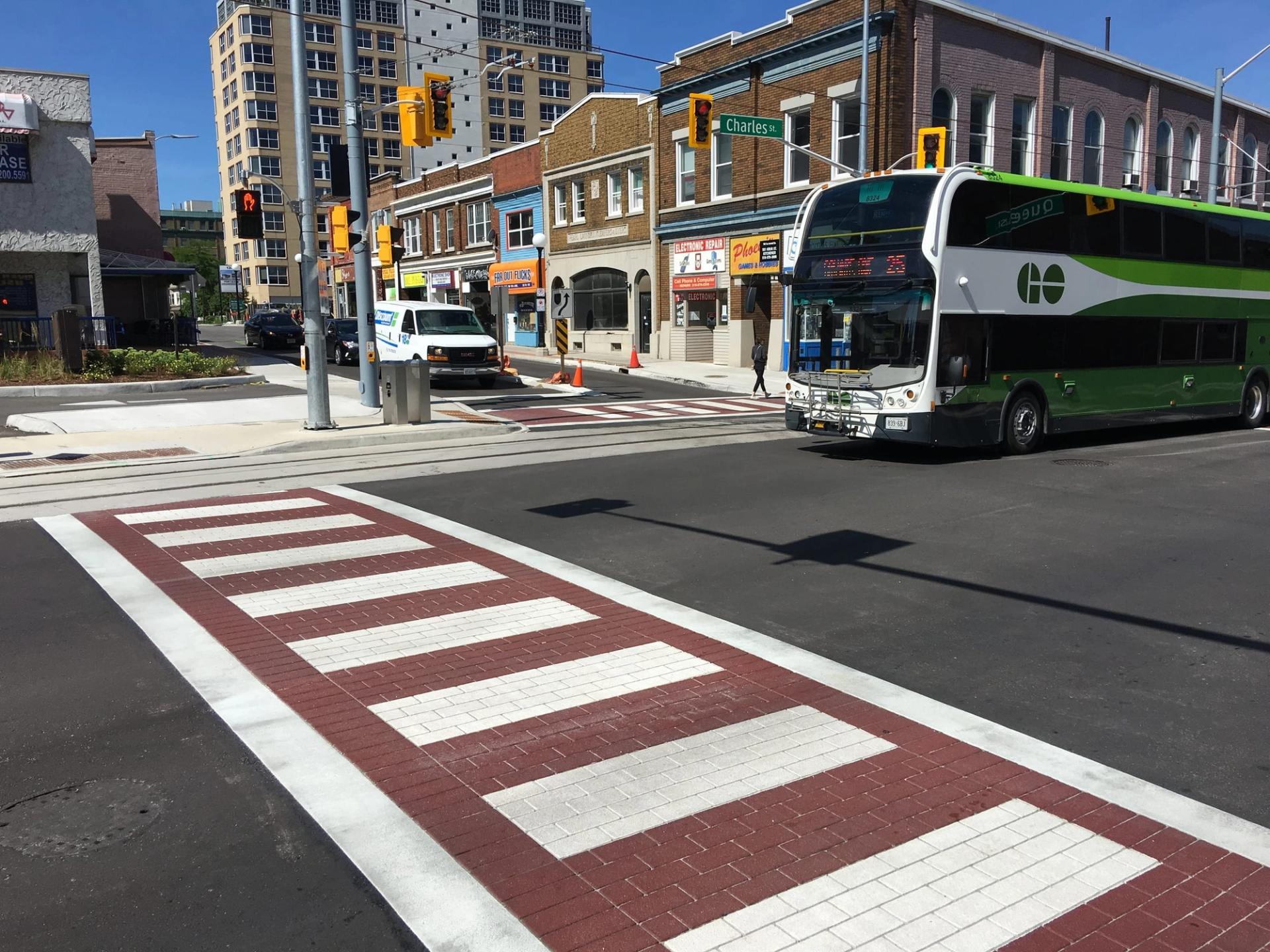

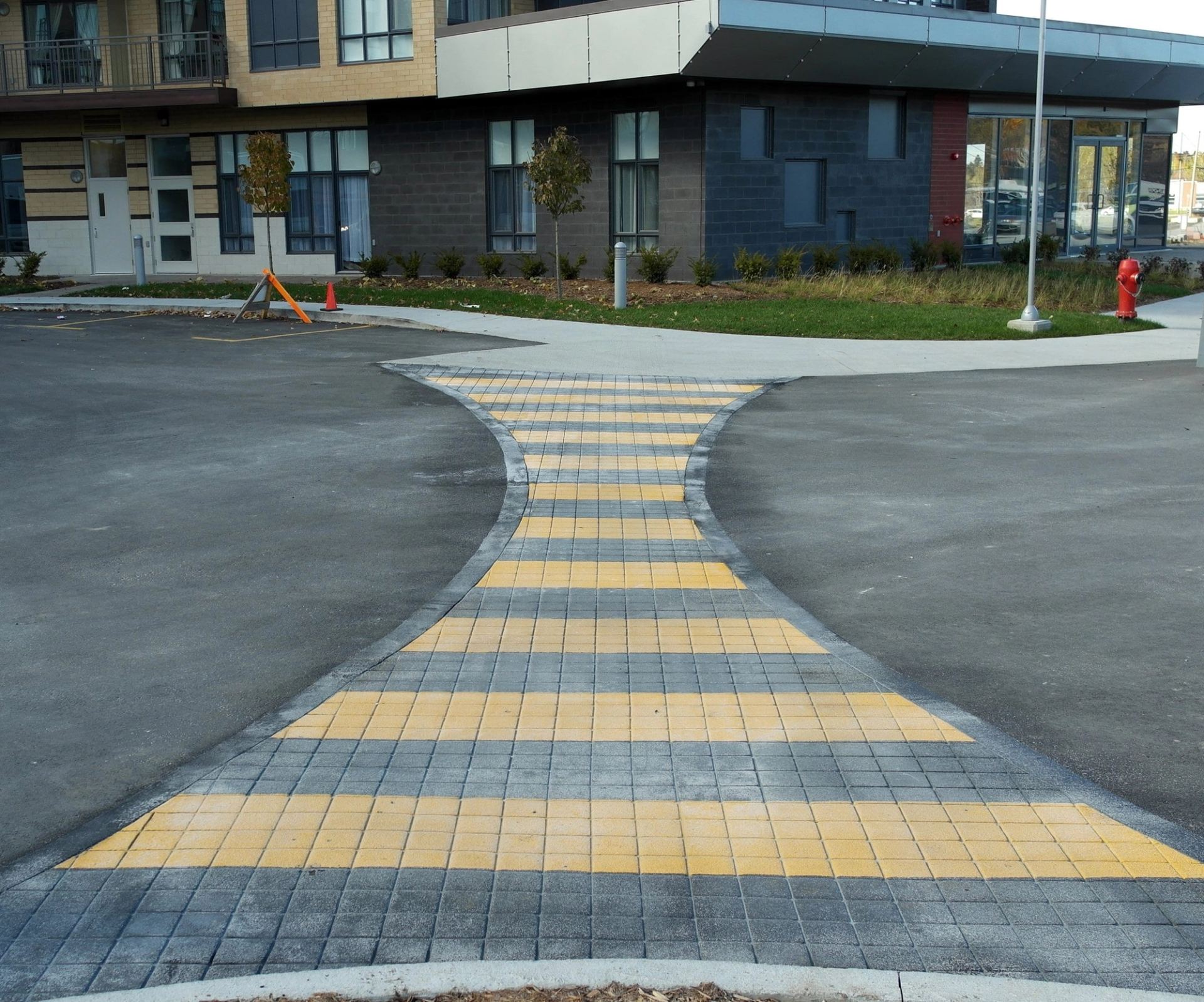

TrafficPatternsXD stamped asphalt — a high-volume crosswalk, Canada. 150mil aggregate-reinforced preformed thermoplastic.

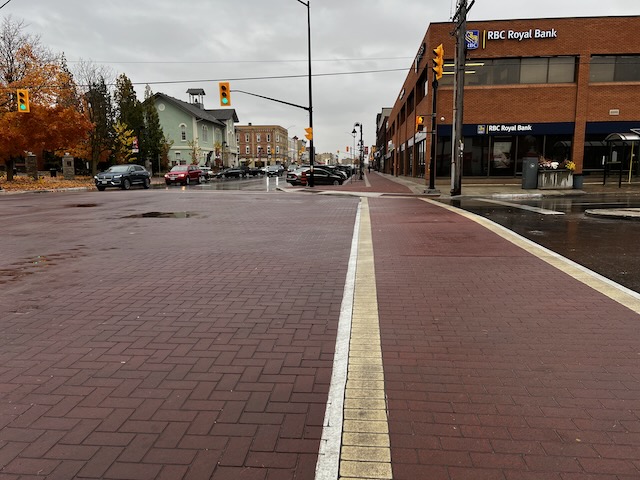

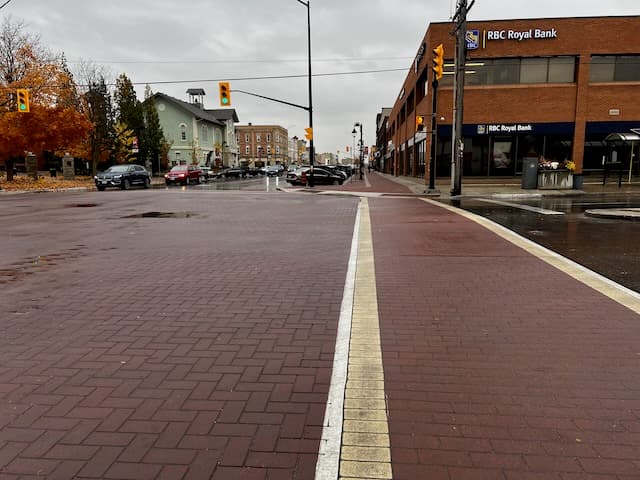

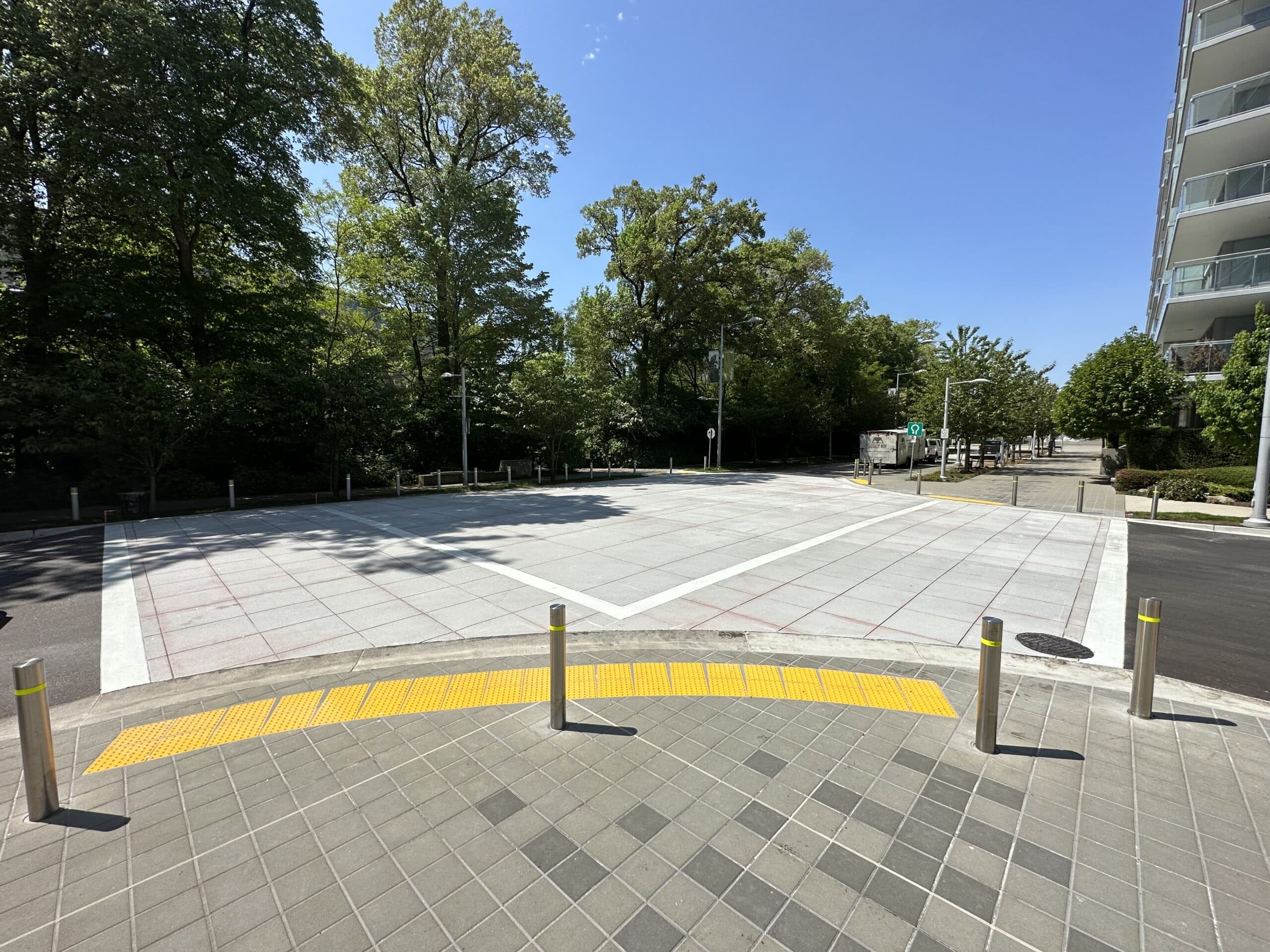

TrafficPatternsXD stamped asphalt — a civic plaza, Canada. 150mil aggregate-reinforced preformed thermoplastic.

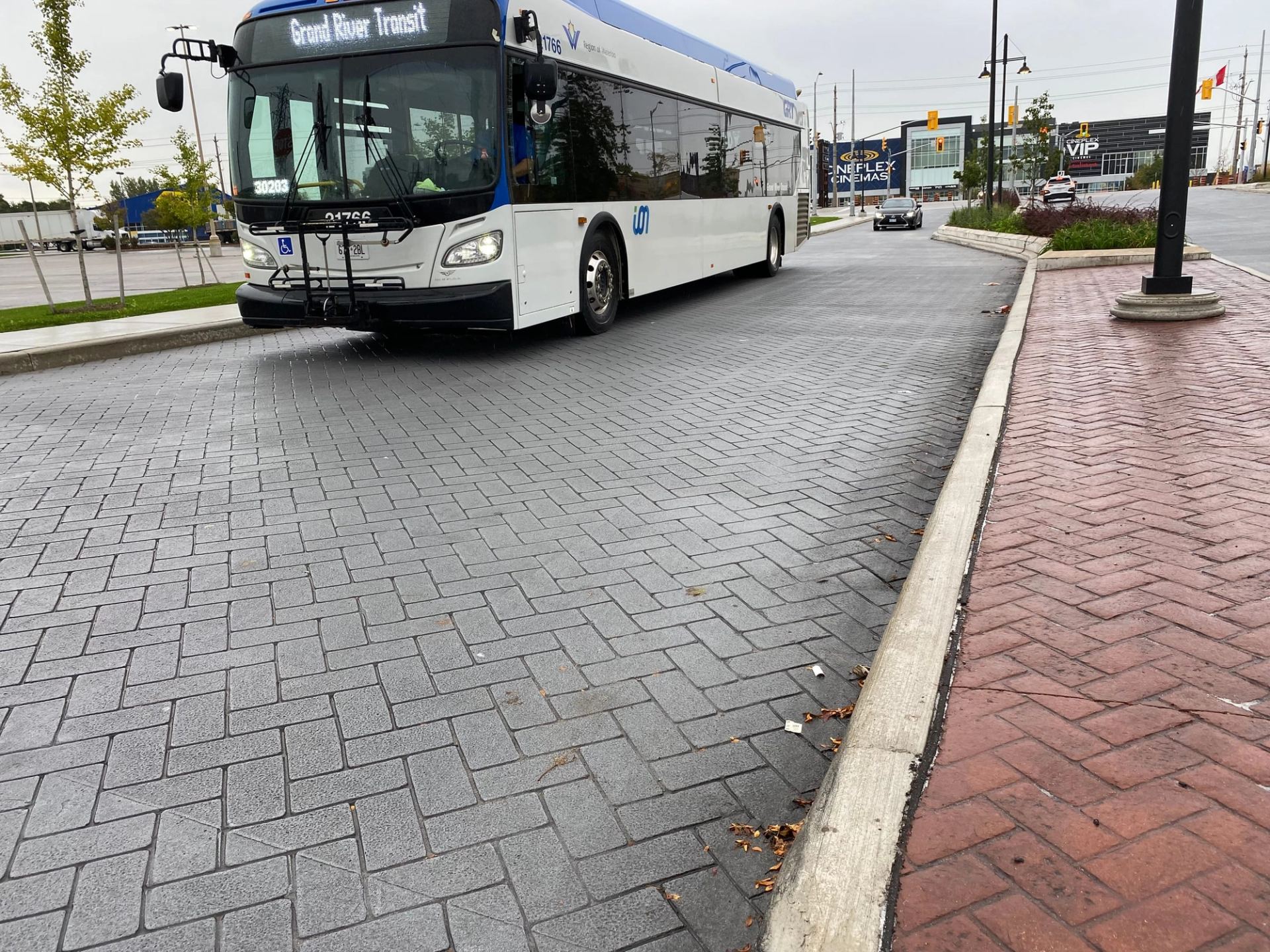

TrafficPatternsXD stamped asphalt — a transit station zone, Canada. 150mil aggregate-reinforced preformed thermoplastic.

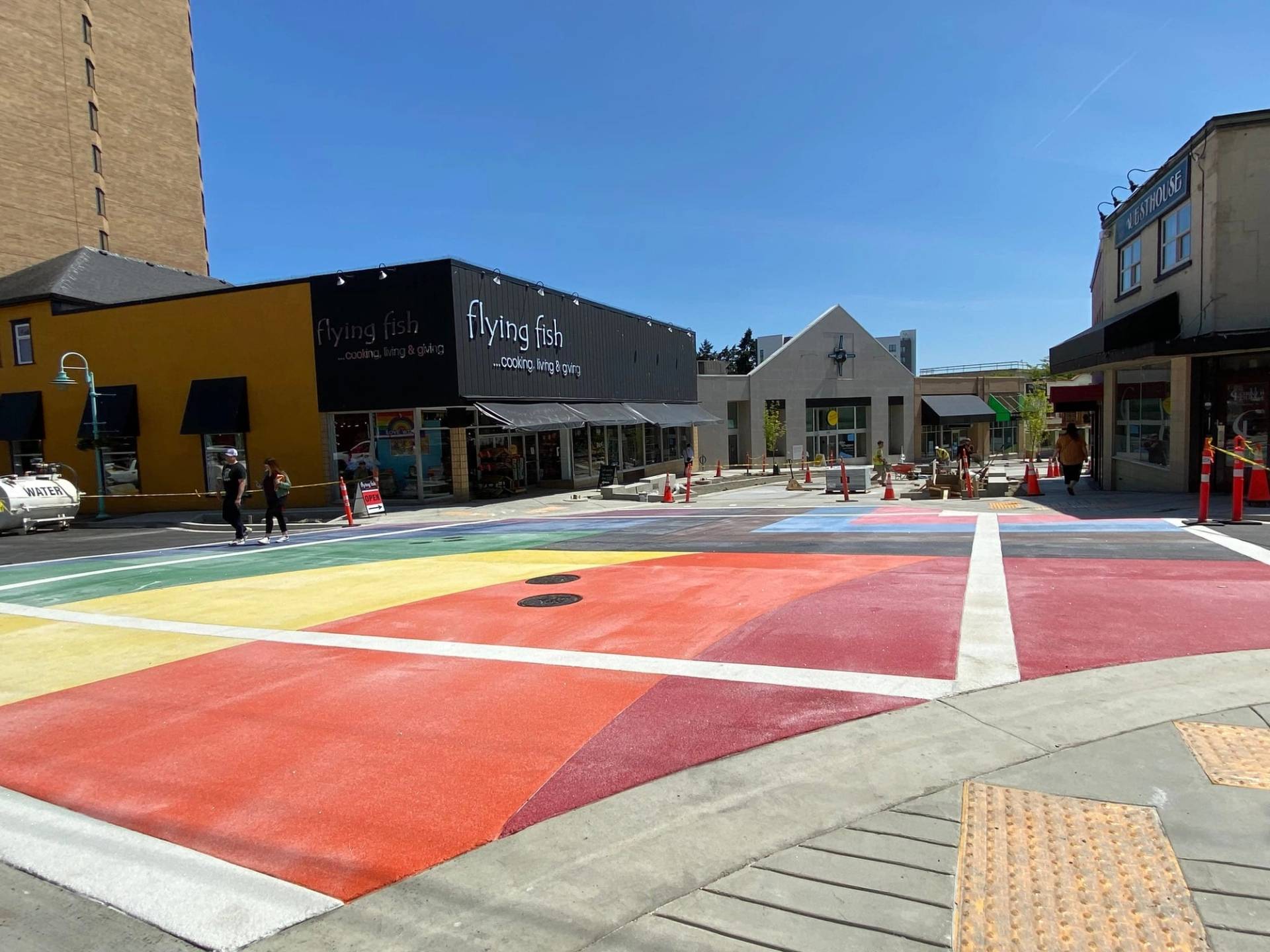

TrafficPatternsXD stamped asphalt — a civic plaza, Canada. 150mil aggregate-reinforced preformed thermoplastic.

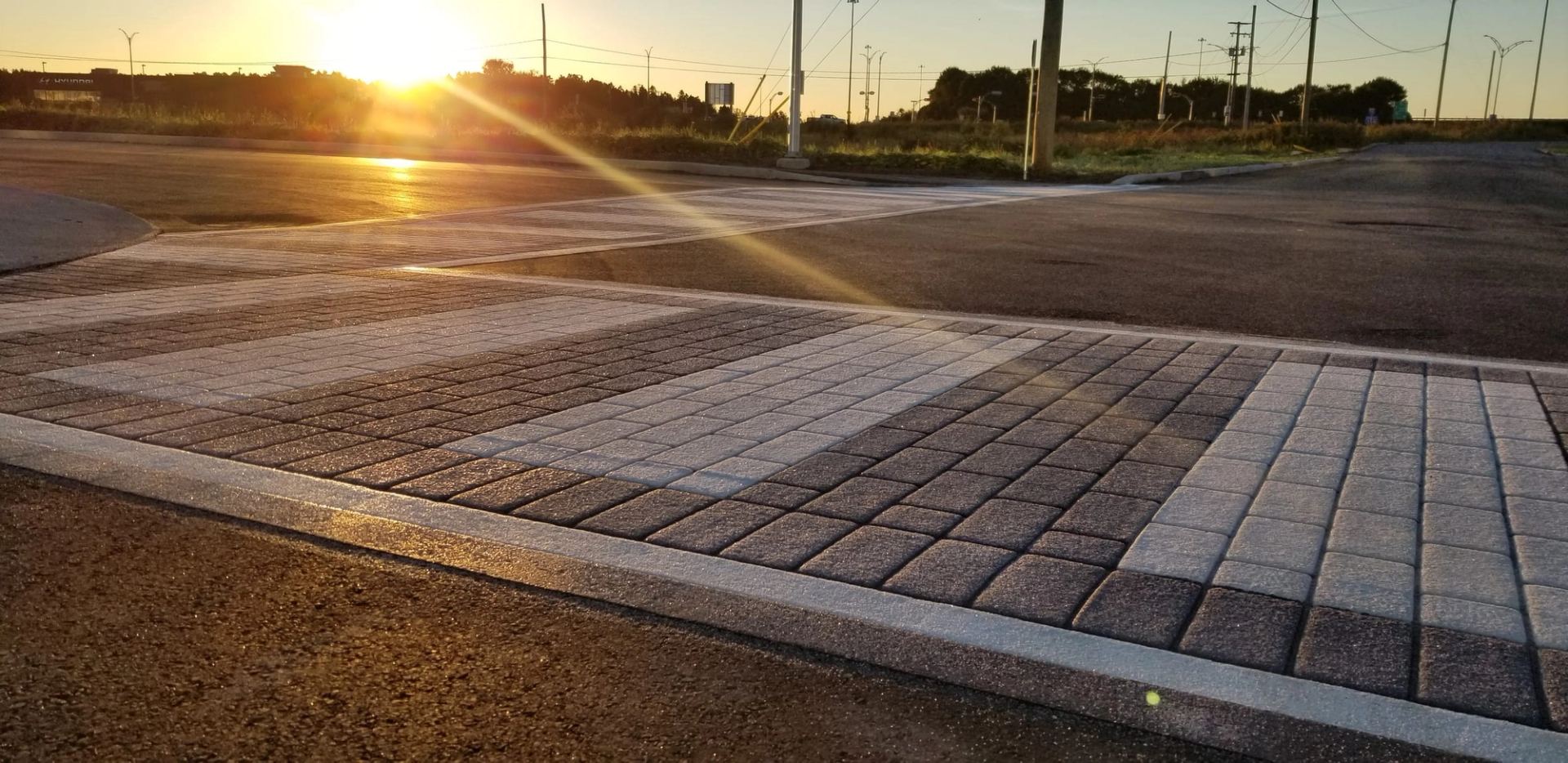

TrafficPatternsXD stamped asphalt — a high-volume crosswalk, Canada. 150mil aggregate-reinforced preformed thermoplastic.
Showing 7 of 109
Full specification
MaterialAggregate-reinforced preformed thermoplastic
Thickness150 mil
Aggregate8–9 Mohs — through the full cross-section
Skid Resistance60 BPN — ASTM E303
BondHeat-fused to asphalt or concrete
Service Life10+ years
